HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts

Model Number : VTS20/TH1000L

Certification : ISO, CE

Place of Origin : China

MOQ : 1

Price : 10000

Payment Terms : T/T

Supply Ability : 20sets/month

Delivery Time : 60 working days

Packaging Details : Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Safety Features : Over-temperature protection, over-current protection, phase sequence protection

Vibration Control : Closed loop control

Internal Volume : 10 liters to 1000 liters

Vibration Frequency Range : 5 Hz to 2000 Hz

Temperature Range : -70°C to +180°C

Power Supply : 220V/380V, 50Hz/60Hz

Material : Stainless steel

Cooling System : Air-cooled or water-cooled

Vibration Modes : Random, Sine, Sine on Random, Random on Random

Display : LCD touch screen

Warranty : 1 year

Humidity Range : 10% to 98% RH

Contact Now

HALT HASS & AGREE Vibration Test Chambers for Automobile & Parts

Product Description:
Ensure the ultimate reliability and durability of your automotive components with our specialized HALT, HASS, and AGREE Vibration Test Chambers. Designed to accelerate product development and identify potential weaknesses, these chambers provide comprehensive testing capabilities for the demanding automotive industry.
Key Features:
HALT (Highly Accelerated Life Testing):  	Rapidly identify design flaws and operational limits.
Accelerated stress testing through combined temperature and vibration.
Step-stress testing to push products beyond their design limits.

HASS (Highly Accelerated Stress Screening): 	Production screening to ensure consistent product quality.
Identify manufacturing defects and process variations.
Stress screening to eliminate early failures.

AGREE (Advisory Group on Reliability of Electronic Equipment): 	Combined temperature and vibration testing to simulate real-world environmental conditions.
Compliance with industry standards for reliability testing.
Precise control of temperature and vibration profiles.

Customizable Chamber Sizes: Tailored to accommodate various automotive components and assemblies.
Advanced Control Systems: Precise control and monitoring of temperature, humidity, and vibration parameters.
Data Acquisition and Analysis: Comprehensive data logging and analysis capabilities for detailed test results.
Safety Features: Integrated safety mechanisms to protect test specimens and operators.
Compliance with Automotive Standards: Meets or exceeds relevant automotive industry standards (e.g., ISO, SAE).
Technical Specifications
Shaker Specifications

  	 			Rated Sine/ Random/ Shock Force
 			1,100 kgf/1,100 kgf/2.200 kgf
 			Armature Mass
 			11kg

 			Frequency Range
 			5-3.000 Hz
 			Inserts Size (Standard)
 			M8

 			Max./Continuous Displacement p-p
 			51 mm/ 51 mm
 			Load Attachment Points (Standard)
 			17

 			Max. Velocity
 			2.0 m/s
 			Natural Frequency-Thrust Axis
 			<3Hz

 			Max.Sine/ Random Acceleration
 			100/60g
 			Mac Vertical Load Support
 			300 kg

 			Armature Diameter
 			235 mm
 			Stray field @ 152 mm above table
 			≤1mT (10 gauss)

 			Fundamental Resonance frequency
 			2,500 Hz (nom.) ± 5%
 			Dimension LxWxH
 			940 mmx715 mmx780 mm

 			Allowable Armature Overturning Moment
 			300 Nm
 			Weight (Uncrated)
 			1.000 kg







 	 			Chamber
 			Dimensions (mm)

 			Capacity
 			 512L

 			Inner Chamber Dimensions
 			800×800×800mm (W width × D depth × H height mm)

 			Temperature Range
 			-40℃～+150℃

 			Cooling Rate
 			+20℃～-40℃ Average throughout the range: 2℃/min


 			Humidity Range
 			20%RH～98%RH

 			Overall Dimensions
 			1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions


 			Weight
 			1500kg


Applications:
Automotive electronic control unit (ECU) testing.
Automotive sensor and actuator testing.
Automotive component and assembly reliability testing.
Automotive system durability testing.
Research and development for new automotive technologies.
Benefits:
Accelerated product development cycles.
Improved product reliability and durability.
Reduced warranty costs and product recalls.
Enhanced product quality and customer satisfaction.
Compliance with industry standards.


Why Choose Us:
We specialize in providing high-quality environmental and vibration testing solutions for the automotive industry. Our HALT, HASS, and AGREE Vibration Test Chambers are designed to meet the most demanding testing requirements, providing accurate and reliable results.
Contact Us:
Contact us today to discuss your automotive testing needs and request a personalized quote.

Product Tags:

AGREE Vibration Test Chambers 512L

Vibration Test Chambers for Automobile Parts

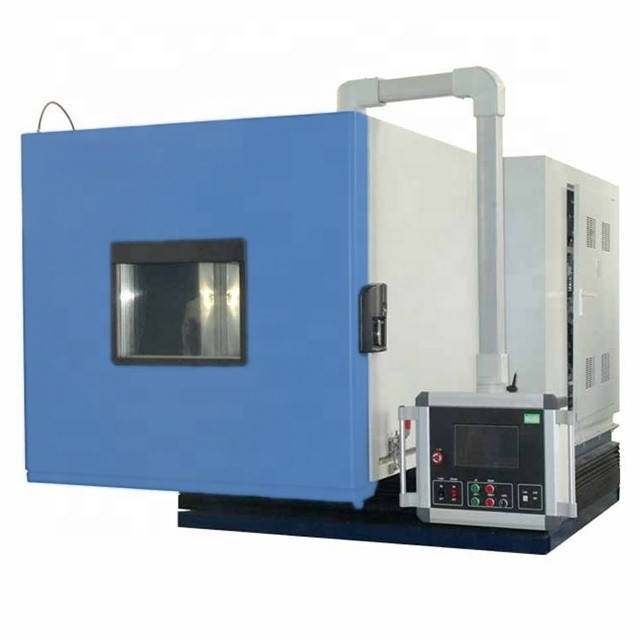

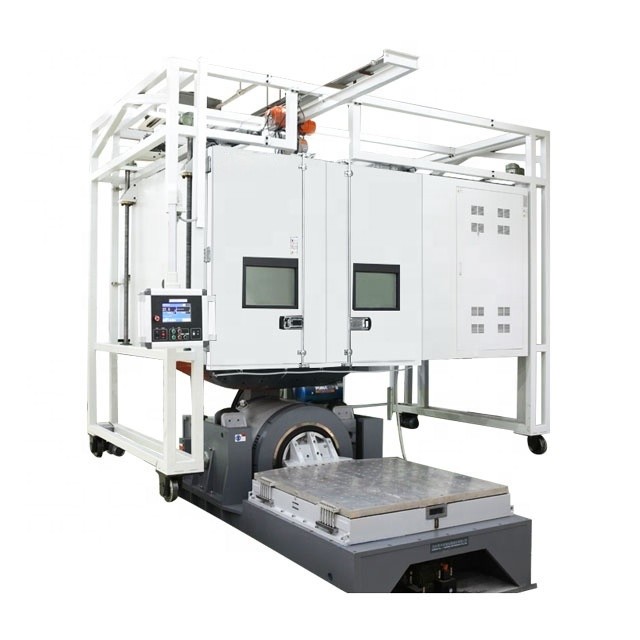

HALT HASS AGREE Vibration Test Chambers 512L For Automobile Parts Images
